CR910 Diesel Fuel Pump Test Bench Common Rail Injector Tester | BEACON MACHINE

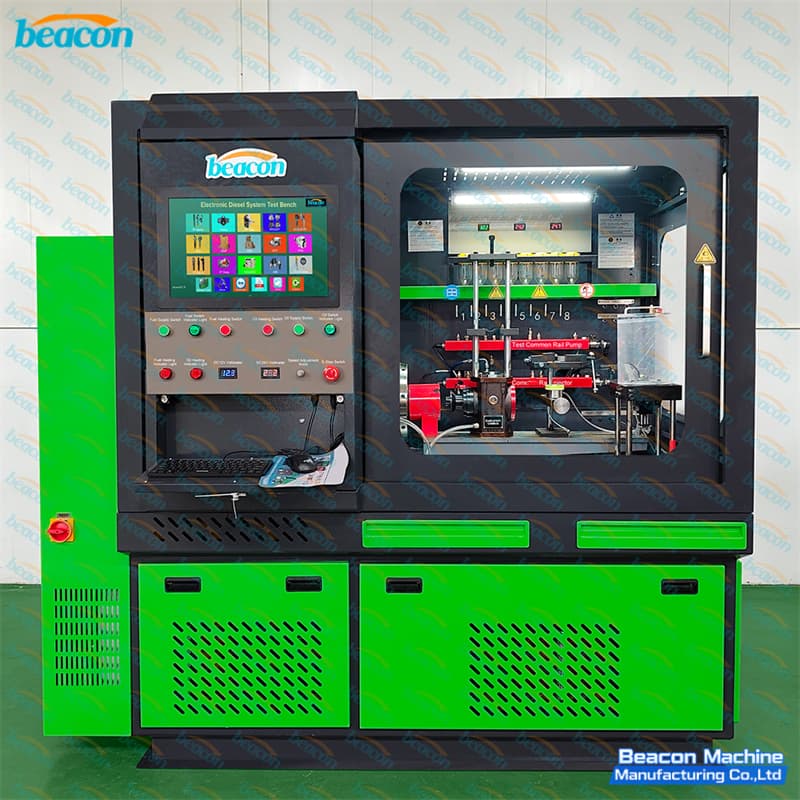

Modern diesel injection facilities demand versatile diagnostic platforms capable of handling diverse fuel delivery architectures under rigorous industrial workloads. The CR910 is an engineered high-precision multi-function common rail test bench for diesel injection systems, delivering seamless measurement across high-pressure common rail, electronic unit injector, and mechanical distributor assemblies. Operating in conjunction with an auxiliary high pressure diesel component diagnostic bench, this equipment stabilizes closed-loop rail pressures up to 2600 bar, ensuring flawless volumetric quantification during pilot, idle, and full-load delivery cycles.

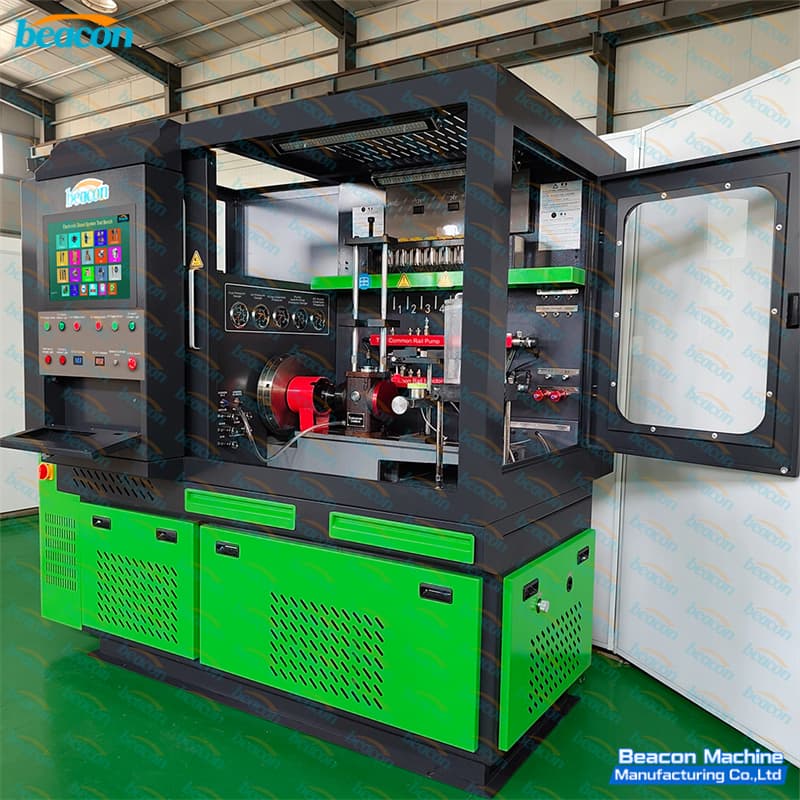

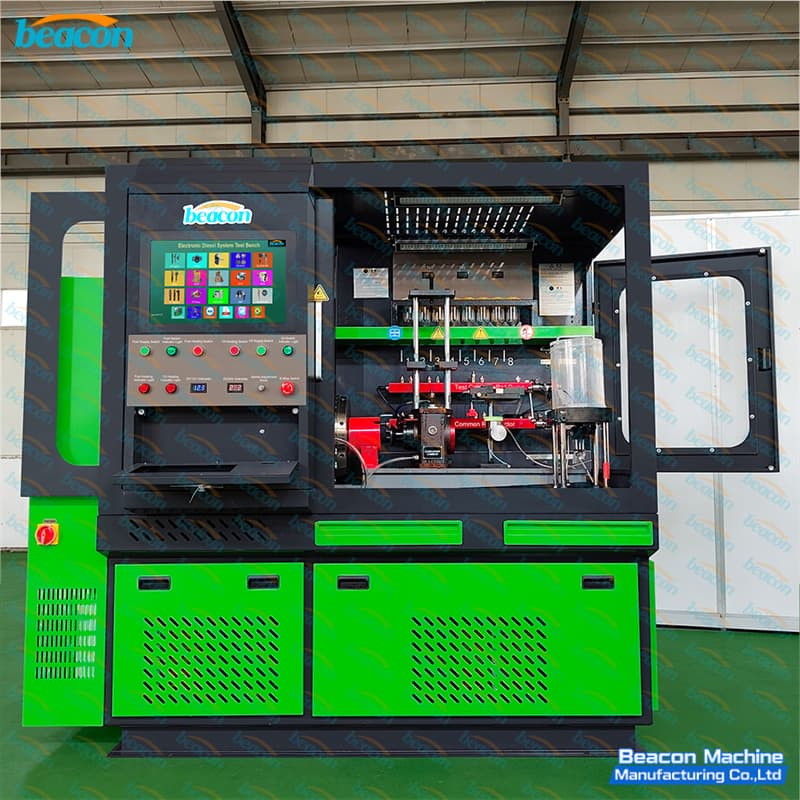

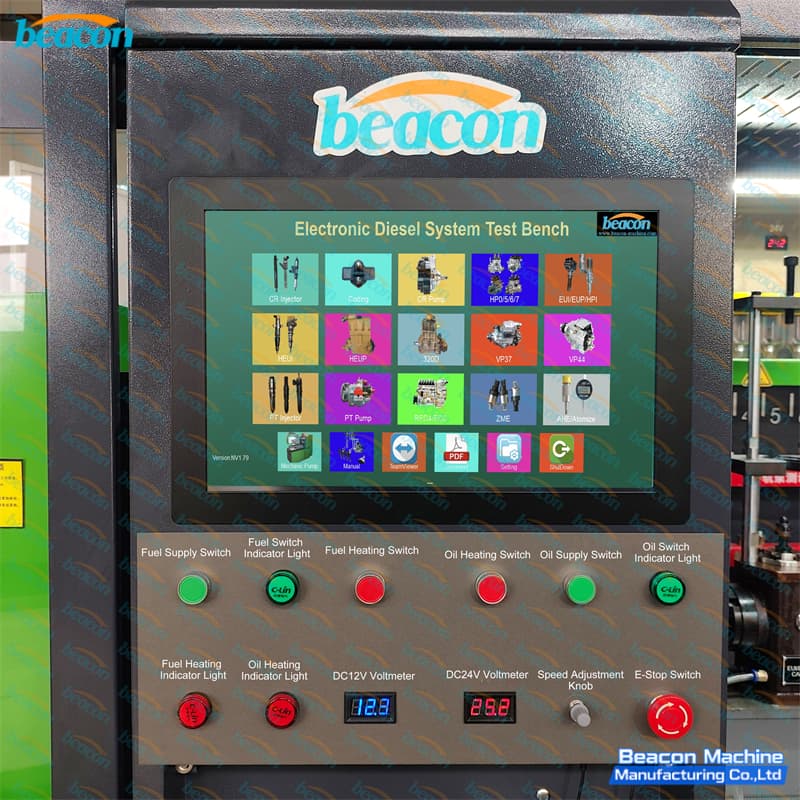

Engineered with a reinforced chassis, independent variable-speed spindle, and high-flow oil conditioning, the workstation accommodates Caterpillar HEUI systems, Bosch CP pumps, and universal Cambox profiles. The integrated industrial PC touchscreen utilizes real-time flow measurement algorithms to calibrate BIP response time and compute genuine IMA and QR compensation codes. Supported by BEACON MACHINE factory quality standards, the CR910 provides diesel rebuilding workshops with exceptional repeatability, automated test execution, and comprehensive commercial vehicle coverage.

Technical Superiority & Service Advantages

• Universal Multi-System Diagnostic Suite: Completely unifies Common Rail injectors and pumps, EUI/EUP Cambox systems, Caterpillar HEUI, and rotary VP37/VP44 testing on a singular platform.

• Dynamic Closed-Loop Pressure Stabilization: Delivers precise common rail pressure control from 0 to 2600 Bar, eliminating pressure ripple during high-speed multi-injection cycles.

• Automated OEM Coding Capability: Computes and assigns authentic correction codes including Bosch IMA, Delphi IQA, Denso QR, and Siemens IIMA strings for seamless ECU matching.

• Precise BIP Actuation Measurement: Dedicated timing sensors evaluate real-time Beginning of Injection Period (BIP) latency to guarantee synchronized multi-cylinder performance.

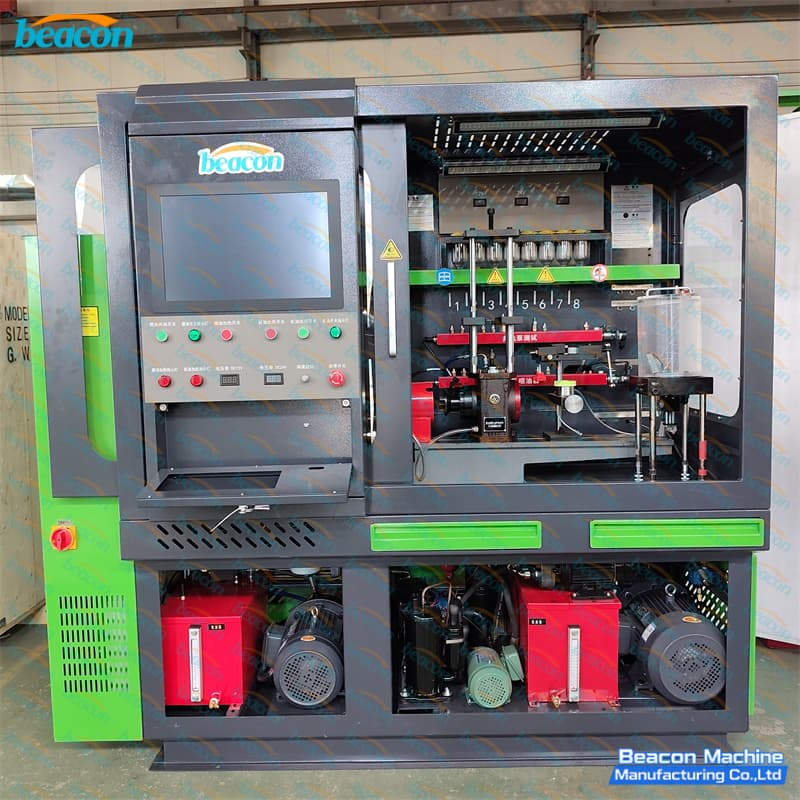

• Intelligent Thermal Regulation: Integrated heavy-duty refrigeration chiller and heating elements maintain test fluid temperature strictly at 40±2℃ throughout long-duration shifts.

• Factory Engineering Support: Backed by BEACON MACHINE with lifetime software database updates, remote diagnostic assistance, and comprehensive worldwide warranty coverage.
